How to Measure Your Vehicle for Spot Graphics (Without Paying for a Site Survey)
You want graphics on your truck. We want to design them so they actually fit. The only thing standing between those two things is a set of accurate measurements and a couple of photos.
Quick clarification before we go any further – this guide is specifically for spot graphics. Logos, lettering, phone numbers, individual design elements placed on specific panels. If you’re looking at a partial wrap or a full commercial wrap, that’s a different process entirely. Wraps require a full template build, and a professional site survey is non-negotiable at that point.
For spot graphics, though? A lot of our clients are contractors who can run a tape measure in their sleep. There’s no reason to charge you for something you’re already capable of doing. Here’s exactly what we need from you and why.

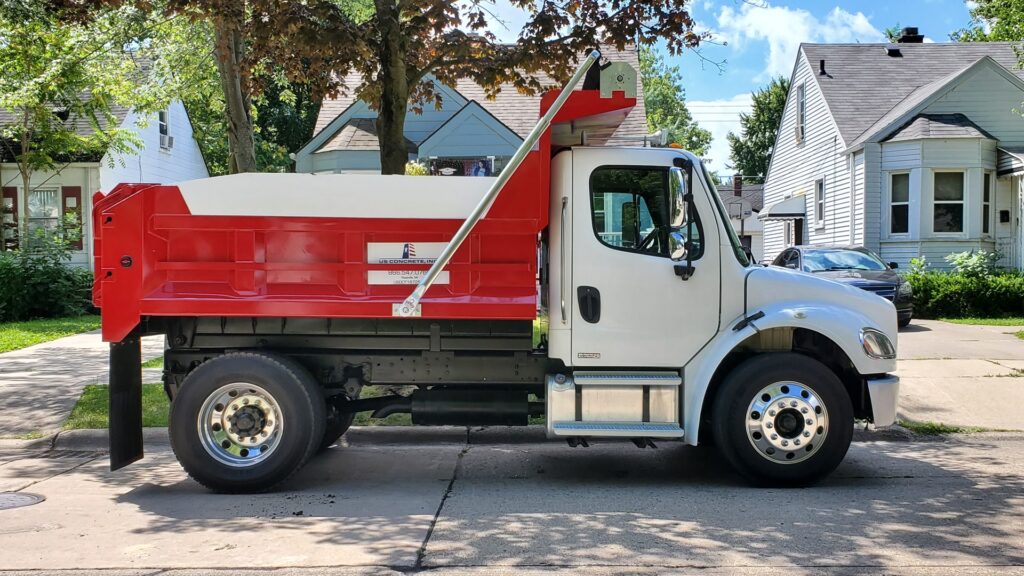

Photo of a dump truck that will be getting graphics on the doors
Why Measurements Matter More Than You’d Think
When we design vehicle graphics, we’re working in a digital file. That file has to translate to a physical piece of vinyl that gets cut, printed, and applied to your vehicle. If the dimensions we’re working from are off, the finished graphic is off. It might be too wide for the door panel and get cut off at the edge. It might crowd the door handle. The logo you wanted centered might land two inches to the left.
And if that happens because we worked from measurements you provided, the cost to reprint and reinstall falls on you. That’s not us being harsh – that’s just the reality of custom production work. We’re building to your specs. If the specs are wrong, the fix starts from scratch.
That’s the reason we offer professional site surveys. When one of our people comes out and measures your vehicle, all of that liability shifts to us. If something doesn’t fit, we handle it. No argument, no invoice.
That said, if you’re confident in your ability to measure accurately – and most of you are – there’s nothing stopping you from doing this yourself. Here’s how.
What You’re Actually Measuring
We need to know the maximum container that your graphics are going into. Think of it like a frame. We need to know the exact size of that frame so we can design everything to fit inside it cleanly, with room to breathe.
For a door panel, that means the full width and full height of the area where the graphics will live. Not the whole door necessarily – the usable flat area between the body lines, handles, trim, and glass. We’ll cover how to identify those boundaries in a minute.
We also need a way to scale your photos to real-world size. A photo is just a photo – it doesn’t tell us whether your door is 36 inches wide or 52 inches wide unless we have something in the image to compare it against. That’s the reference measurement, and it’s the piece most people miss.
Remember to take the straightest photo possible when doing a site survey for vehicle graphics.
Part 1: Vehicle Spot Graphics
Step 1 – Take Straight-On Photos
This is the step where most people mess up, and it’s completely avoidable.
You need to photograph each surface that’s getting graphics – driver’s side, passenger’s side, and the rear if graphics are going on the back. The photo must be taken straight on, from a distance. Not from the corner of the vehicle. Not from close up with your phone. Straight on, backed up as far as you reasonably can.
When you shoot too close or at any kind of angle, you get distortion. The panels appear to taper or bow. We can’t scale a distorted photo accurately, which means we can’t trust the design we build from it.
Stand back. Level your phone so it’s roughly parallel to the surface you’re shooting. Aim for the midpoint of the panel you’re measuring – for a door, that means door-height and centered on the door, not shooting from above or below. Take a few shots and use the flattest one.
It’s okay to take a photo with the tape measure in the image
Step 2 – Measure the Panel
Now get out the tape measure. You need two measurements:
- Width – the full horizontal span of the area where graphics will go
- Height – the full vertical span of that same usable area
Pay attention to body lines. Most vehicles have horizontal creases pressed into the door panel – one near the top, one near the bottom. Those lines are your natural boundaries. Vinyl graphics look better when they stay within those lines rather than crossing them, so measure between body lines, not door edge to door edge.
Also note where the door handle sits, where the window starts, and where any trim or molding lives. You don’t have to map out exact coordinates – just be aware that graphics can’t overlap those areas, and let that define the edges of your usable space when you measure.
Step 3 – Get a Reference Measurement in the Photo
This is the part that ties everything together.
We need to know the real-world size of at least one object that appears clearly in your photo. That lets us mathematically scale the entire image to actual size. Without this, your photo is just a picture – we have no way to know how large the vehicle actually is.

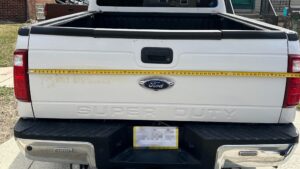

The easiest method: two people. One person runs a tape measure across a horizontal body line on the vehicle – fully extended, pulled tight, readable from the front. The second person steps back and takes the straight-on photo with the tape measure visible and the number clearly legible in the frame.
Do the same for height – run the tape vertically while the second person photographs it. Horizontal measurements are slightly more reliable because there’s less natural body curve to account for, but we need both.

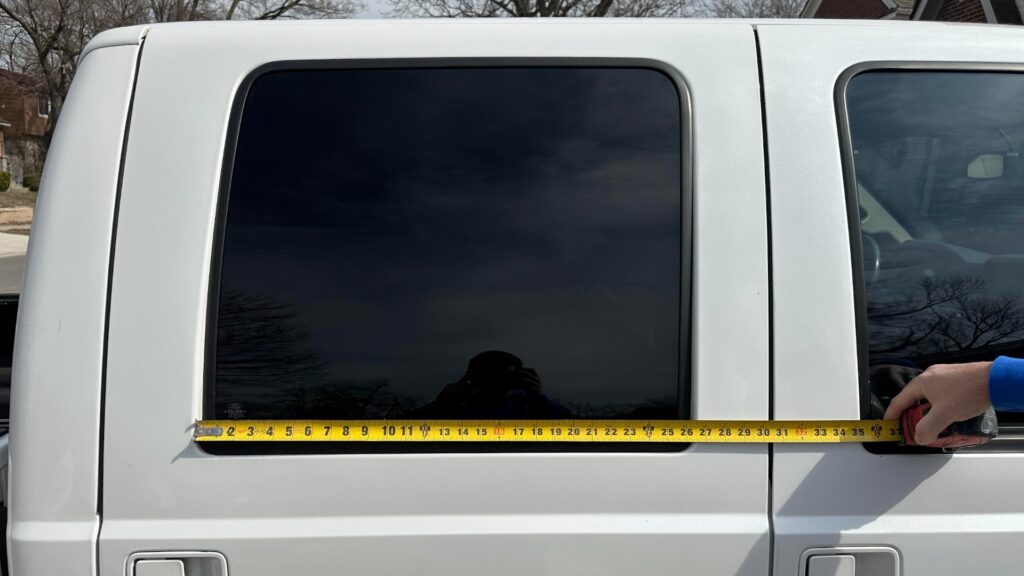

If you’re working solo, measure one clearly identifiable element in the photo and note it separately. A door handle housing, the distance between two body line intersections, a trim piece with a defined edge. As long as that element is visible in the photo and you can tell us its exact dimension, we can scale from there.
Write the measurements directly on the photo, or include them in a note with each image. Don’t just send us the photos with no context – that defeats the whole purpose.

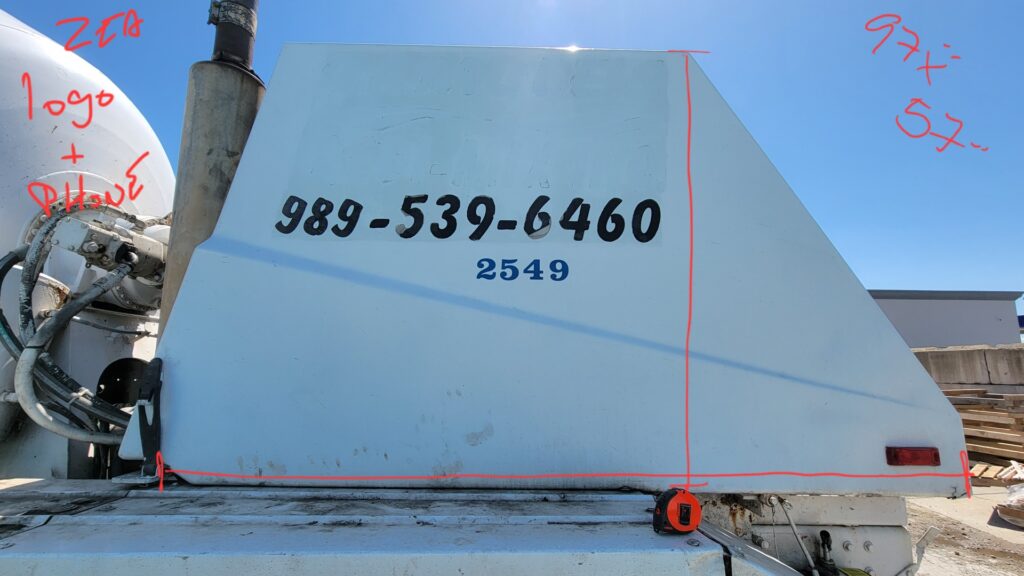

Cement truck with dimensions for vinyl graphics written on the photograph
What to Send Your Project Manager
When you’ve got everything, pass it along to your project manager or send it through our contact page:
- Straight-on photo of the driver’s side (if graphics are going there)
- Straight-on photo of the passenger’s side (if graphics are going there)

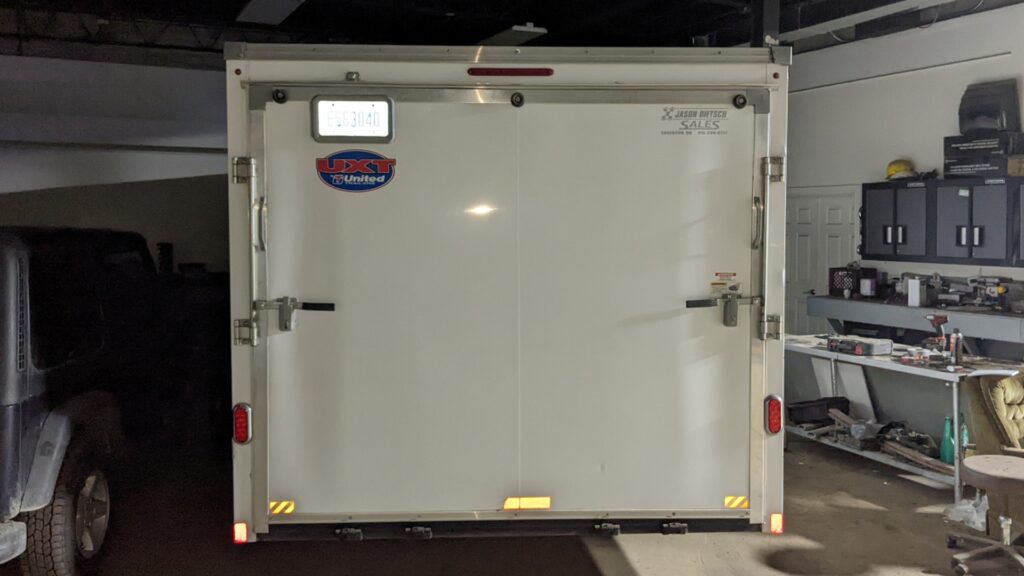

- Straight-on photo of the rear (if graphics are going there)
- Width measurement of each panel
- Height measurement of each panel
- Notes on anything relevant: aftermarket bumpers, existing graphics, damage, accessories, etc.
The more context you give us, the faster we can get a design in front of you.
Part 2: Windows and Storefront Frontage
Good news: the same principles apply here, and it’s a little easier. Windows are flat, the angles are 90 degrees, and there’s no body curve to account for.

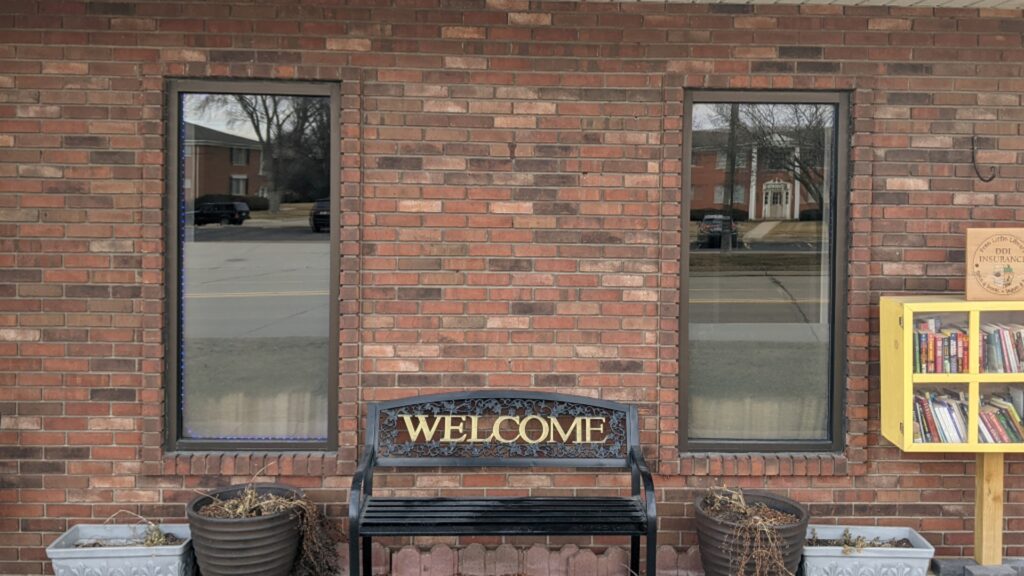

Take a straight-on photo of each window or surface that’s getting graphics. Measure the width and height of each pane. Include a reference measurement in the photo just like you would for a vehicle.
The one thing people consistently get wrong with storefronts: don’t assume all your windows are the same size. They almost never are. Even a row of windows that looks perfectly uniform will typically have small variations from pane to pane. When graphics are supposed to line up across multiple windows, those fractions of an inch add up fast.
NOTE: Most building windows are different sizes, even if they look the same.

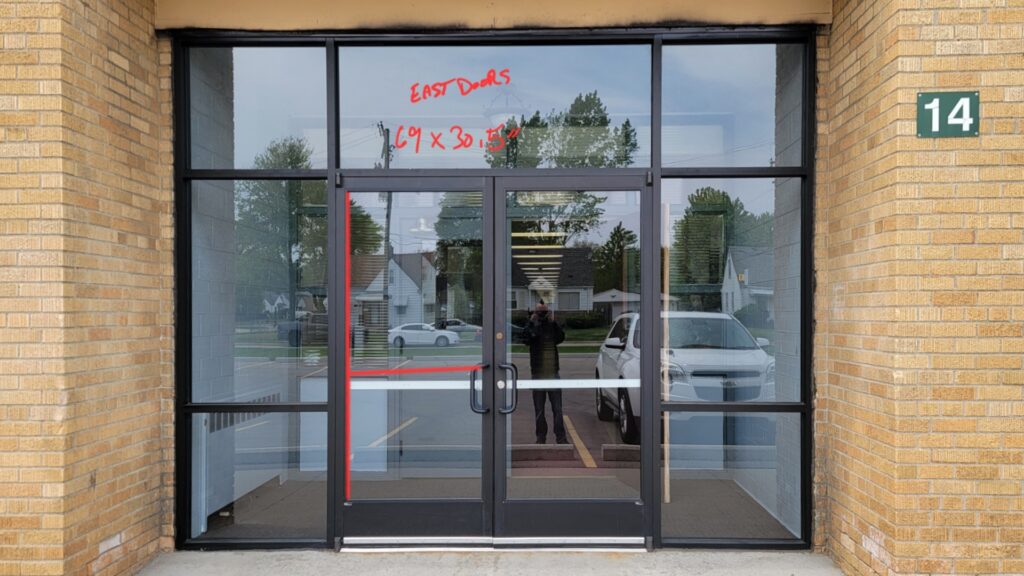

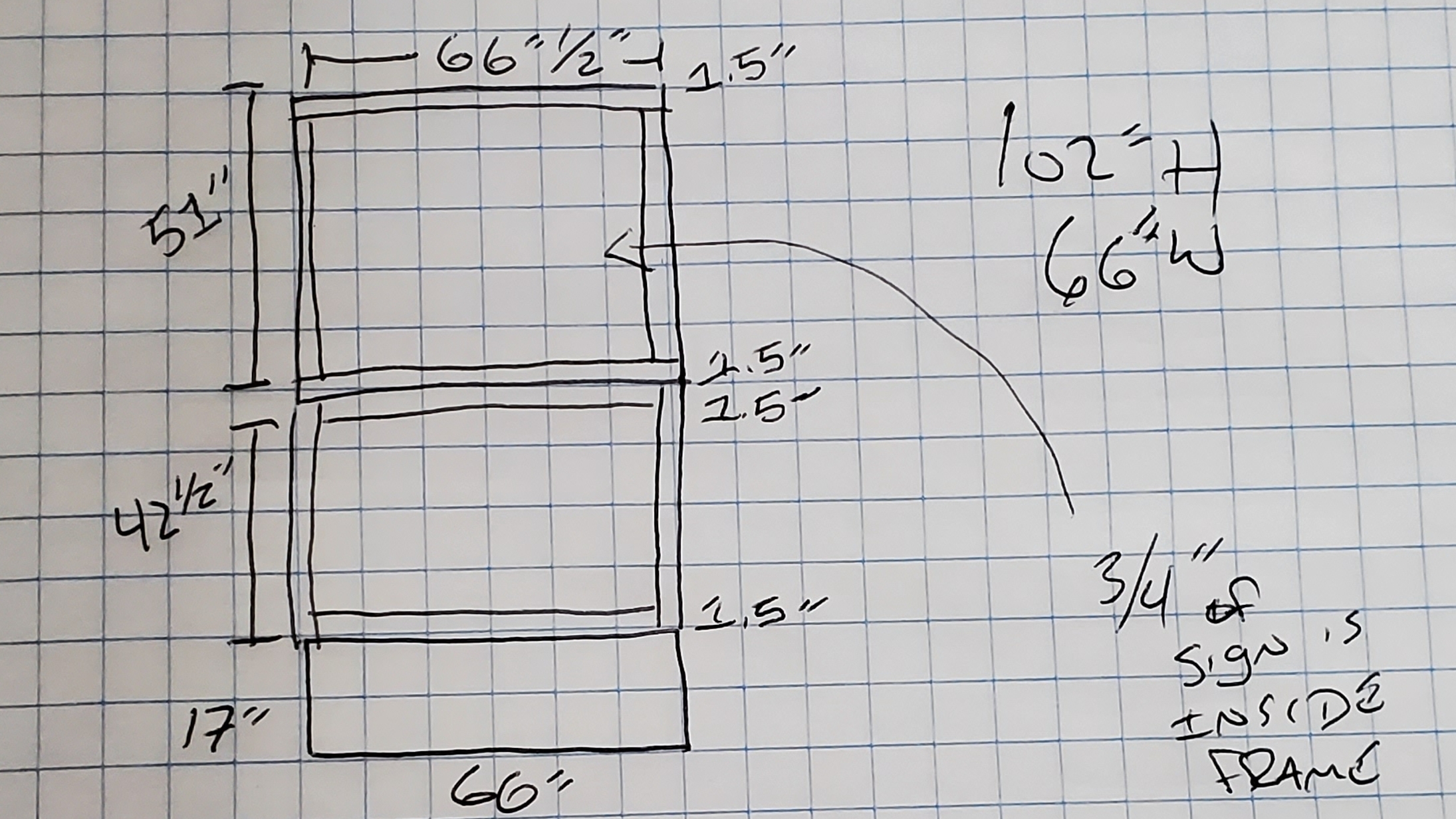

Measure every window separately. Label each one (left pane, center pane, right pane, etc.) and keep the measurements organized so we know which number belongs to which window. Take individual photos if the windows are significantly different in size, or one straight-on shot of the full frontage if a single reference measurement covers the whole span.
If there are mullions – the frames between panes – measure those too. We need to know whether graphics are going on the glass only or crossing the frame, because that changes how we lay out the design.
Frequently Asked Questions
Can I just give you the make, model, and year of my truck?
We can pull manufacturer templates for a lot of common vehicles, and that’s a useful starting point. The problem is that templates are based on factory stock – they don’t account for your specific truck’s trim level, aftermarket parts, existing graphics, or normal production variation. For anything requiring a precise fit, we still need photos and measurements from your actual vehicle.
What if I only have one person available?
It’s doable. Measure the panel first and write the dimensions down. Then, in your photo, use any fixed element you can accurately measure – the door handle, a trim piece, the license plate frame – as your reference object. Tell us what it measures and we can scale from there. Two people just makes it cleaner and faster.
Does it matter what camera I use?
A modern smartphone works fine. The variables that matter are distance and angle, not camera quality. Back up, get the shot level, and make sure the full panel is in frame with a little room on all sides. Avoid the front-facing camera and portrait mode. Standard rear camera is the right call – no zoom if you can help it, or a moderate 2x zoom if that’s what it takes to get the angle right without distorting the shot.
What happens if my measurements are off?
If the graphics are designed to your measurements and they don’t fit correctly at installation, the cost to reproduce and reinstall falls on you. We’ll do everything we can to catch obvious discrepancies before going to production – but we can’t catch what we can’t see. If the measurement was wrong and we built to it, the fix starts from scratch. That’s not a threat, just the reality of custom production work.
Is a professional site survey worth it?
For a single truck with straightforward door graphics, probably not – as long as you’re comfortable following these steps. For a fleet, a complex design that wraps around curves and contours, or a storefront with a lot of window panes and architectural quirks, yes. Site surveys typically run a couple hundred dollars depending on location and complexity, and that fee gets credited toward your project total. It’s a fraction of what a reprint and reinstall costs if measurements are wrong – and when we measure, all of that liability is ours.
Ready to Get Started?
If you’ve got your photos and measurements ready, pass them to your project manager and we’ll get things moving. Not sure what you need yet? Schedule a discovery call and we’ll help you figure out the right approach for your vehicle and your budget before you measure anything.
